Title : polarimeters
Content : Measuring Mode: Optical Rotation, Specific Rotation, Concentration, Sugar Degrees, °Z (ISS) Temp. Probe Range 10° - 100°C Temp. Probe Accuracy ±0.1°C Measurement Time 5 measurements in less than 25 seconds (avg.) Light Source Standard Tungsten-Halogen 6V, 20W, avg. 2,000 hour life Light Source Optional LED 20-30 mA 100,000 hr. avg. life Sample Chamber Accepts sample tubes up to 200 mm Data Storage 32 GB Non-removable Compact Flash Communication Interface 4 – USB Ports, 2 – RS232 Ports, Ethernet CAT 16 Port for Network Connection Calibration Automatic calibration via touchscreen Display 8” color, 800 x 600 pixel resolution with 400 nits of brightness User Interface Touchscreen

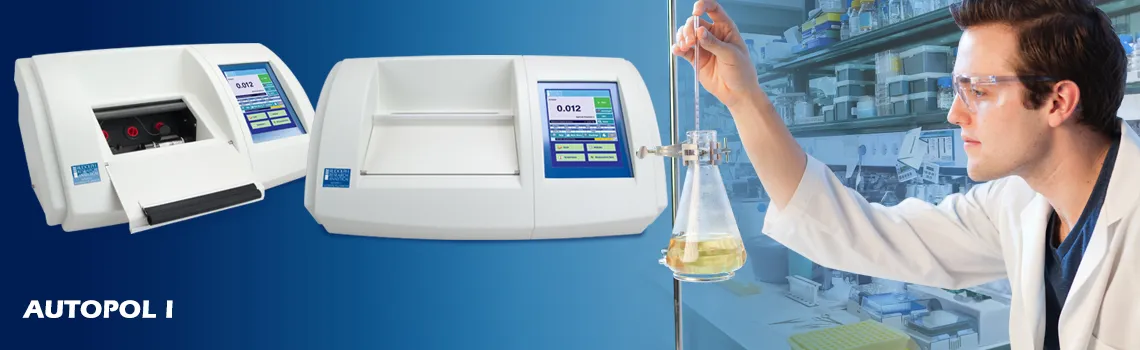

Title : AUTOPOL® I
Content : Measuring Mode Optical Rotation Specific Rotation Specific Rotation Plus Concentration User Defined Scale Sugar Degrees °Z(ISS) Measuring Scale Degrees Arc Optical Rotation Resolution 0.01° Arc Optical Rotation 0.01% Concentration 0.01 Specific Rotation Accuracy 0.01° Arc Optical Rotation 0.03°Z (ISS) Sugar Degrees AP Acccuracy Option Resolution: 0.001° Arc Optical Rotation Reproducibility: 0.002° Arc Optical Rotation Accuracy ±0.004° Arc Optical Rotation AP Resolution Option AP Selectable Resolution: 0.01, 0.001° Arc Reproducibility 0.01° Arc Optical Rotation Measuring Range ± 89.99° Arc Optical Rotation ± 999.99°Arc Specific Rotation 0-99.9% Concentration

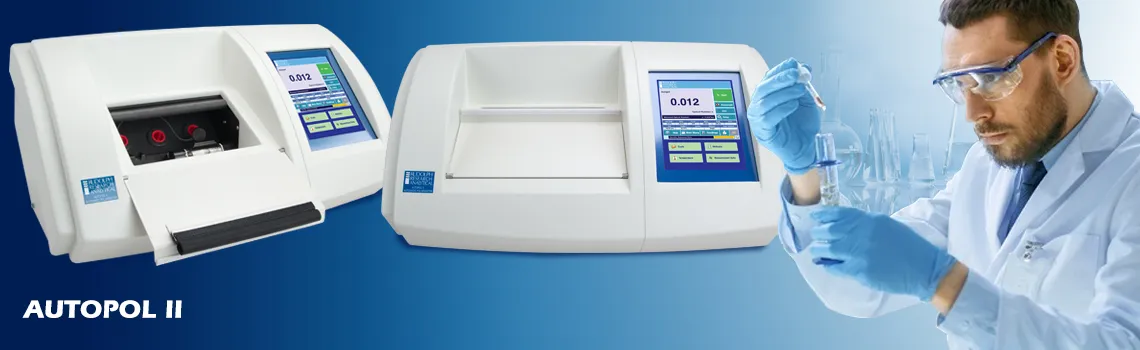

Title : Autopol II
Content : Measuring Mode Optical Rotation Specific Rotation Specific Rotation Plus Concentration User Defined Scale Sugar Degrees °Z(ISS) Measuring Scale Degrees Arc Optical Rotation Resolution 0.01° Arc Optical Rotation 0.01% Concentration 0.01 Specific Rotation Accuracy 0.01° Arc Optical Rotation 0.03°Z (ISS) Sugar Degrees AP Acccuracy Option Resolution: 0.001° Arc Optical Rotation Reproducibility: 0.002° Arc Optical Rotation Accuracy ±0.003° Arc Optical Rotation AP Resolution Option AP Selectable Resolution: 0.01, 0.001° Arc Reproducibility 0.01° Arc Optical Rotation Measuring Range ± 89.99° Arc Optical Rotation ± 999.99°Arc Specific Rotation 0-99.9% Concentration

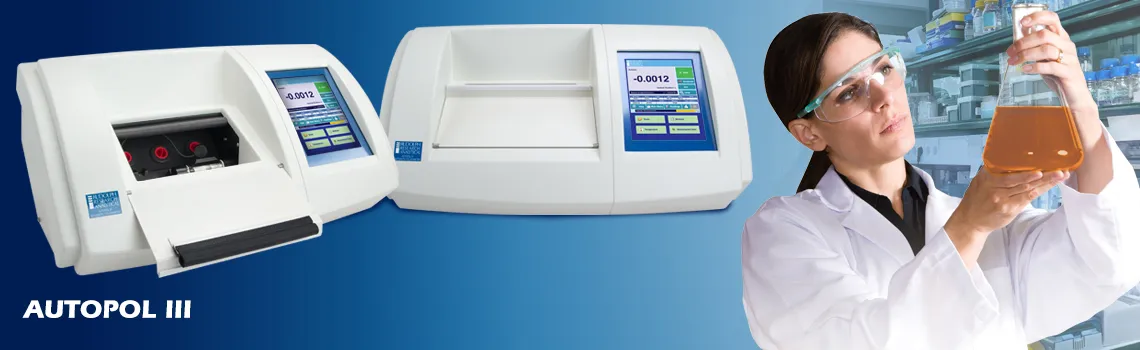

Title : Autopol III
Content : Measuring Mode Optical Rotation Specific Rotation Specific Rotation Plus Concentration User Defined Scale Sugar Degrees °Z(ISS) Measuring Scale Degrees Arc Optical Rotation Resolution 0.001° Arc Optical Rotation 0.001% Concentration 0.001 Specific Rotation Accuracy 0.002° Arc up to 1° 0.2% above 1° 0.0 1° Z (ISS) AP Acccuracy Option Accuracy ±0.002° up to 10° ±0.003° 10° - 89 ° Arc Optical Rotation AP Resolution Option AP Selectable Resolution: 0.01, 0.001, 0.0001° Arc Reproducibility 0.002° Arc Optical Rotation Measuring Range ± 89.99° Arc Optical Rotation ± 999.99°Arc Specific Rotation 0-99.9% Concentration

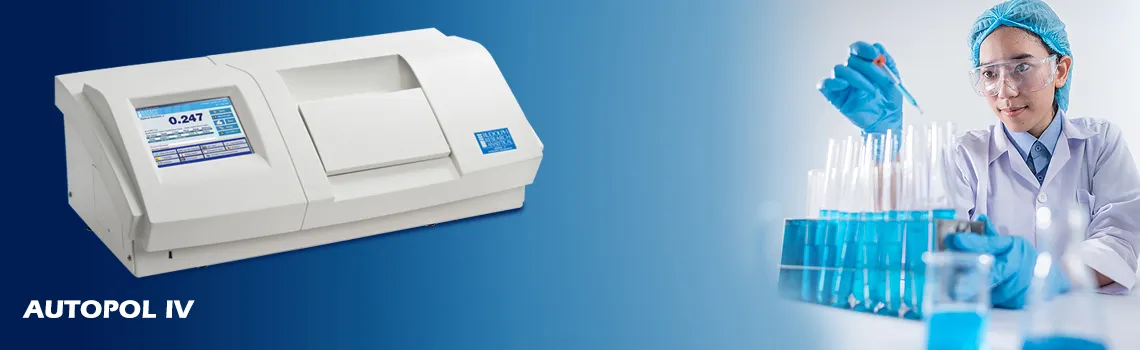

Title : Autopol IV
Content : Measuring Mode Optical Rotation Specific Rotation Specific Rotation Plus Concentration User Defined Scale Sugar Degrees °Z(ISS) Measuring Scale Degrees Arc Optical Rotation Resolution 0.001° Arc Optical Rotation 0.001% Concentration 0.001 Specific Rotation Accuracy 0.002° up to 1°, 0.2% up to 5°, 0.01° above 5° Measuring Range ± 89.99° Arc Optical Rotation ± 999.99°Arc Specific Rotation 0-99.9% Concentration

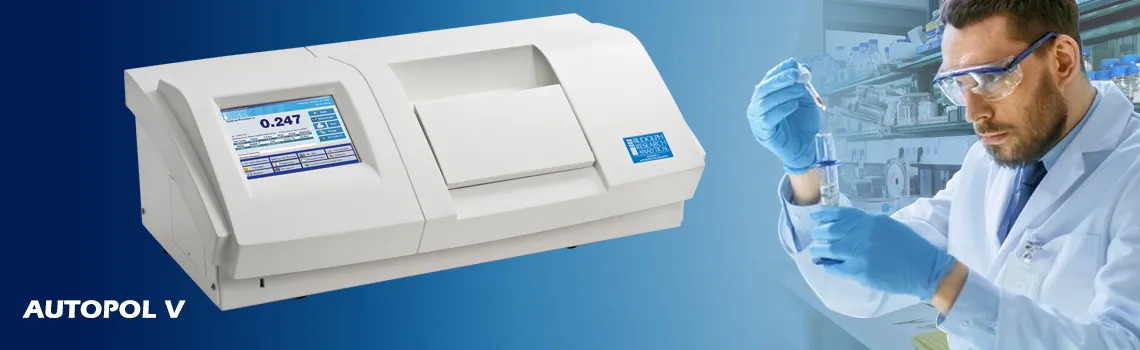

Title : Autopol V
Content : Measuring Mode Optical Rotation Specific Rotation Specific Rotation Plus Concentration User Defined Scale Sugar Degrees °Z(ISS) Measuring Scale Degrees Arc, % Concentration Measuring Range ± 89.99° Arc Optical Rotation ± 999.99°Arc Specific Rotation 0-99.9% Concentration Resolution 0.001° Arc Optical Rotation 0.001% Concentration 0.001 Specific Rotation Reproducibility 0.002° Arc Standard Model Accuracy 0.002° up to 1°, 0.2% up to 5°, 0.01° above 5° AP Model Specs Accuracy (546nm and 589nm): ±0.002° Arc over ±89.9° Arc Accuracy for other wavelengths is the same as the standard model Selectable Resolution 0.01°, 0.001°, 0.0001° Arc Optical Rotation Prism Glan Thomson calcite quartz Optical Wavelengths 365nm, 405nm, 436nm, 546nm, 589nm, 633nm (other wavelengths available) Wavelength Selection Touchscreen Selectable: 6 standard TempTrol™ Range Automatic Electronic Heating & Cooling 15°-35°C (Standard) ±0.2° C (Standard) TempTrol™ Accuracy ±0.2°C Temp. Probe Range 10°-100°C

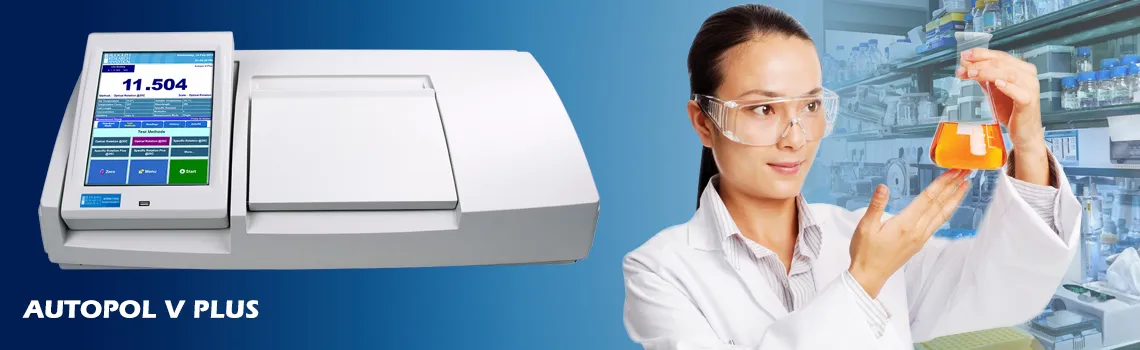

Title : Autopol V PLUS
Content : Measuring Mode Optical Rotation Specific Rotation Specific Rotation Plus Concentration User Defined Scale Sugar Degrees °Z(ISS) Measuring Scale Degrees Arc, % Concentration Measuring Range ± 89.99° Arc Optical Rotation ± 999.99°Arc Specific Rotation 0-99.9% Concentration Resolution 0.001° Arc Optical Rotation 0.001% Concentration 0.001° Specific Rotation Reproducibility 0.002° Arc Standard Model Accuracy 0.002° up to 1°, 0.2% up to 5°, 0.01° above 5° AP Model Accuracy and Resolution (Autopol V Plus Single) Accuracy: ±0.002° Arc over ±89.9° Arc Selectable Resolution 0.01°, 0.001°, 0.0001° Arc Optical Rotation AP Model Accuracy and Resolution (Autopol V Plus Six Wavelength) Accuracy (546nm and 589nm): ±0.002° Arc over ±89.9° Arc Selectable Resolution 0.01°, 0.001°, 0.0001° Arc Optical Rotation
Title : Autopol VI
Content : Measuring Mode Optical Rotation Specific Rotation Specific Rotation Plus Concentration User Defined Scale Sugar Degrees °Z(ISS) Measuring Scale Degrees Arc, % Concentration Measuring Range ± 89.99° Arc Optical Rotation ± 999.99°Arc Specific Rotation 0-99.9% Concentration Resolution 0.0001° Arc Optical Rotation 0.0001% Concentration 0.0001° Specific Rotation Reproducibility 0.0002° Arc Accuracy 0.0003° See TB 926 Prism Glan Thomson calcite quartz Optical Wavelengths 365nm, 405nm, 436nm, 546nm, 589nm, 633nm (other wavelengths available) Wavelength Selection Touch Screen Selectable: 6 Standard TempTrol™ Range Automatic Electronic Heating & Cooling 15°-35°C TempTrol™ Accuracy ± 0.2°C
